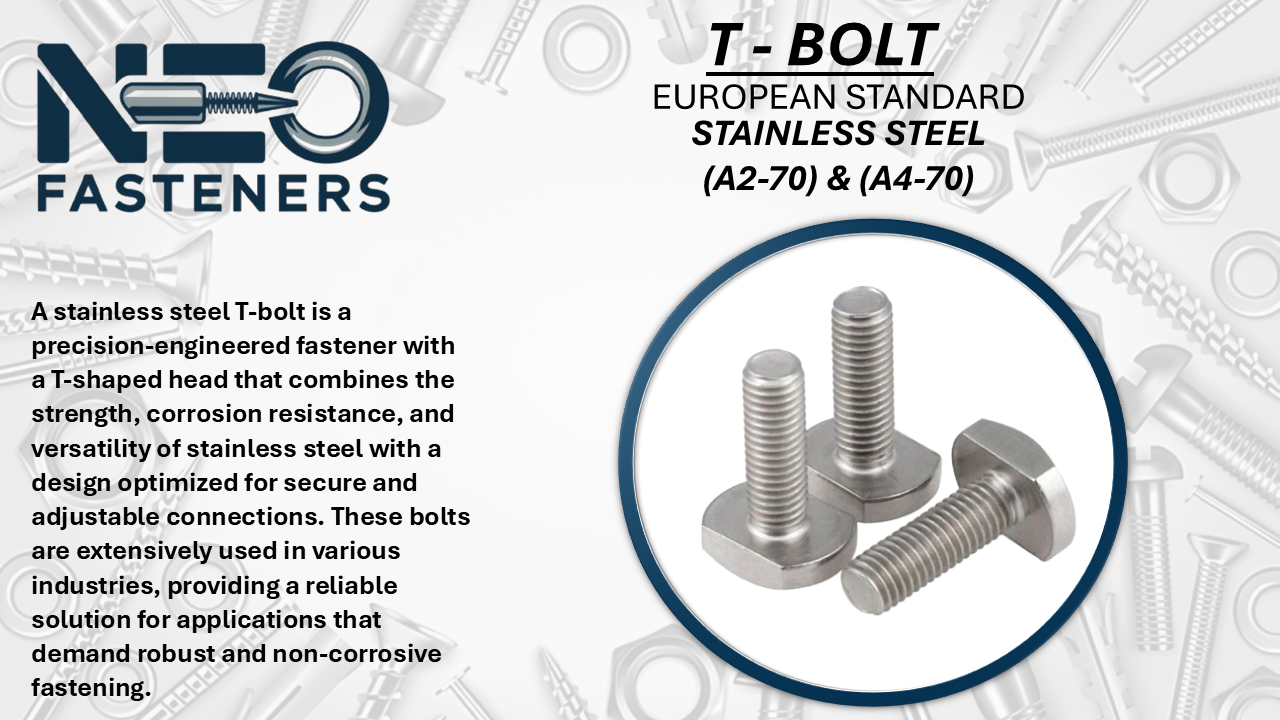

🔩 T-Bolt (T-Head Bolt) – Slide-In Bolt for Slots & Channels | Neo Fasteners
Neo Fasteners offers high-quality T-Bolts, also known as T-Head Bolts, engineered for secure fastening into slots, channels, and profiles without the need for additional tools or fixtures. These bolts feature a T-shaped head that fits flush into grooves, allowing for easy alignment, repositioning, and assembly in modular structures, framing systems, jigs, solar panels, and machine bases.
T-Bolts are a go-to solution for applications requiring quick installation, adjustability, and strong axial load resistance.
🔧 Key Features
- T-Head Design: Slides directly into T-slots and grooves
- Easy Assembly: No need to drill or hold the bolt while tightening
- High Load-Bearing Strength: Ideal for structural and machine fixtures
- Corrosion-Resistant Finishes: For indoor, outdoor, and harsh environments
- Available with Nuts & Washers as Complete Sets
📐 Technical Specifications
- Thread Sizes: M6 to M20 (custom sizes on request)
- Length Range: 15 mm to 150 mm
- Thread Type: Metric (MM), BSW, UNC
- Head Shape: T-Head (Rectangular or Square base)
- Threading: Full thread / Partial thread based on application
- Tolerance: ISO class fit (6g or as specified)
🧱 Material Options
- Mild Steel (MS) – General purpose
- High Tensile Steel (Grade 8.8 / 10.9) – For heavy loads
- Stainless Steel (SS 304 / SS 316) – Corrosion and chemical resistant
- Brass – Non-magnetic and decorative use
- Aluminum / Nylon – Lightweight or electrical use (on request)
🎨 Finish Options
- Zinc Plated (Blue / White / Yellow)
- Black Oxide
- Hot Dip Galvanized (HDG)
- Nickel / Chrome Plated
- Passivated (for SS bolts)
- Self-color / Bare metal
📁 Standards
- DIN 261 / DIN 787
- IS standards for T-Head Bolts
- ANSI / JIS / Custom as per drawing
- OEM-specific profiles and slot tolerances available
🏗️ Applications
- Aluminum extrusion framing systems
- T-slot rails and modular assembly lines
- Solar panel mounting structures
- Machine bases, conveyors, and fixtures
- Automotive body and trailer clamping systems
- Electrical panels and support racks
- Jig and fixture setups in fabrication shops
📦 Packaging & Delivery
- Packed in cartons, poly bags, or wooden boxes
- Custom labelling and barcoding for OEMs
- Material Test Certificate (MTC) & RoHS compliance on request
- Pan-India & export-ready stock available
- Fast delivery for standard T-bolt sizes
