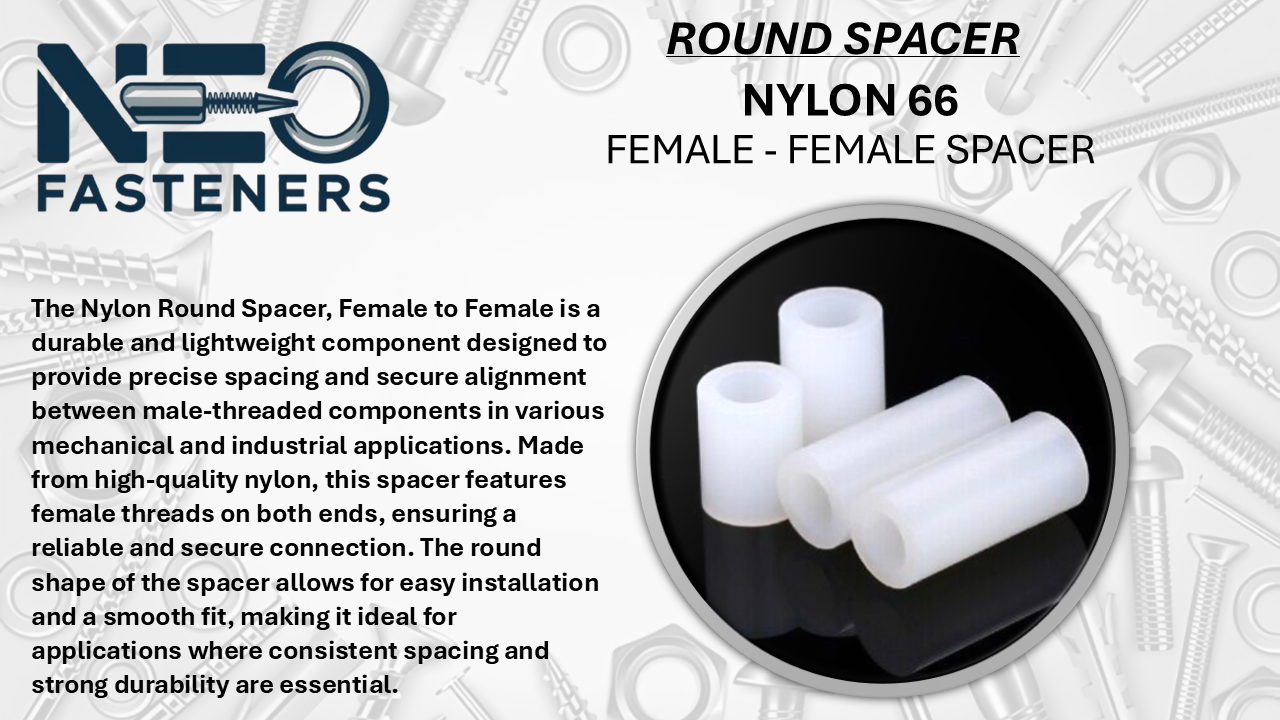

🔩 Nylon Round Spacer – Lightweight, Non-Conductive Separator | Neo Fasteners
Nylon Round Spacers are precision-molded cylindrical components made from engineering-grade Nylon 6/6.
They are used to maintain a fixed distance between two components in an assembly without adding weight or causing electrical conductivity.
These spacers are ideal for PCB mounting, electrical panels, enclosures, and light-duty mechanical assemblies, offering corrosion resistance, electrical insulation, and chemical stability.
✅ Key Features
- Cylindrical round body – Simple, lightweight design
- Non-threaded through-hole – For screw or bolt clearance
- Corrosion-free – Will not rust or tarnish
- Electrical insulation – Prevents short circuits in electronics
- Chemical resistant – Withstands exposure to most industrial chemicals
- Non-magnetic – Suitable for sensitive instruments
- Lightweight – ~1/6th the weight of steel spacers
🧱 Material & Properties
- Material: Nylon 6/6 (Polyamide) – UL94V-2 rated (UL94V-0 available on request)
- Temperature Range: -40°C to +120°C (continuous use)
- Tensile Strength: ~70 MPa
- Moisture Absorption: Low, for dimensional stability
- Colors: Natural White, Black (custom colors on request)
📏 Available Sizes
Metric
| Inner Diameter (ID) | Outer Diameter (OD) | Length (L) |
|---|---|---|
| 3.2 mm (for M3) | 6 mm – 10 mm | 2 – 50 mm |
| 4.3 mm (for M4) | 8 mm – 12 mm | 2 – 50 mm |
| 5.3 mm (for M5) | 9 mm – 14 mm | 2 – 50 mm |
| 6.4 mm (for M6) | 10 mm – 16 mm | 2 – 50 mm |
| 8.4 mm (for M8) | 12 mm – 18 mm | 2 – 50 mm |
Custom ID, OD, and length available for bulk orders.
📐 Standards
- DIN 348 – Spacer Bushings
- ISO 9001:2015 Certified manufacturing
- RoHS & REACH Compliant
🎨 Colors
- Standard: Natural White, Black
- Optional: Blue, Yellow, Red, or custom RAL colors (MOQ applies)
🧰 Applications
- Electronics – PCB separation and insulation
- Electrical Panels – Cable routing and board mounting
- Instrumentation – Accurate spacing for modules and sensors
- Control Cabinets – Space management for stacked components
- Lightweight Structures – Non-metallic separation without adding weight
- DIY Projects – Prototyping and model assembly
📦 Packaging
- Small Packs: 50 / 100 pcs per bag
- Bulk Supply: 5,000 – 10,000 pcs per carton
- OEM packaging & labeling available
- Material Test Certificates available on request
