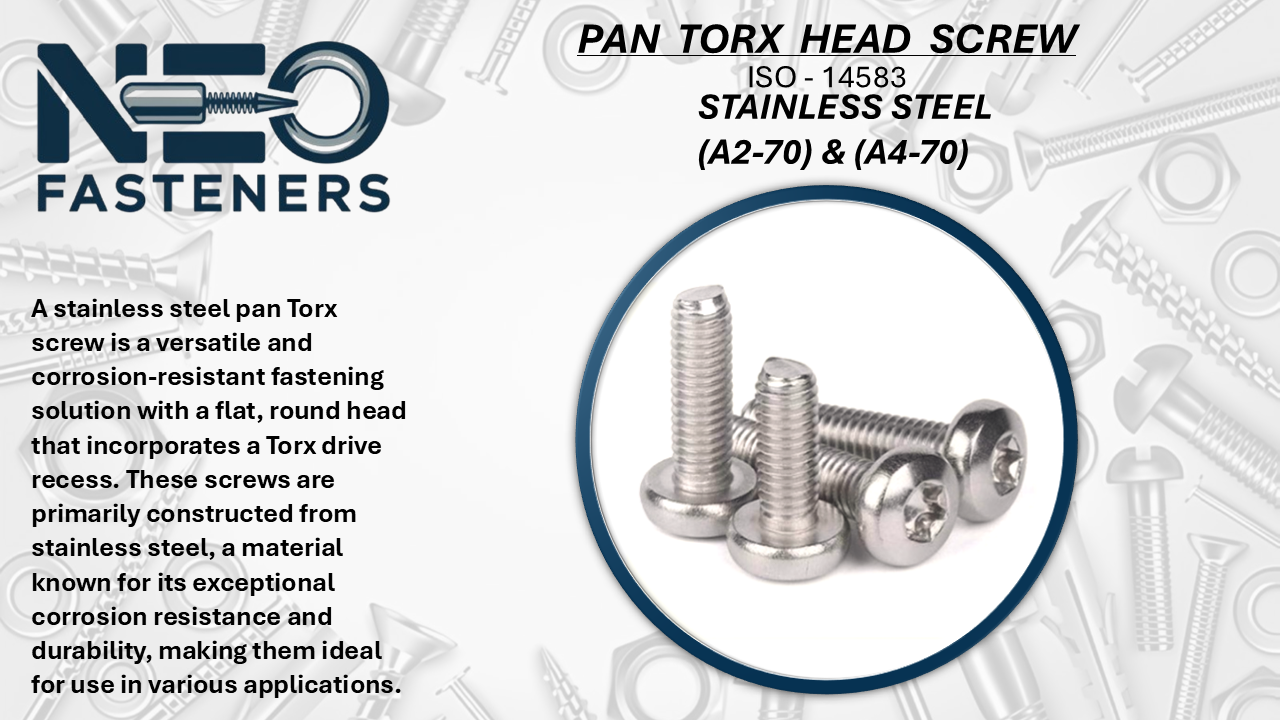

🔩 Pan Head Torx Screws – High-Torque, Anti-Camout Fasteners | Neo Fasteners
Pan Head Torx Screws combine a low-profile, rounded pan head with a 6-lobe internal Torx (star) drive, offering maximum torque transfer, reduced driver wear, and resistance to cam-out. Ideal for use in electronics, electrical panels, automotive, plastic enclosures, and industrial machinery, Torx screws provide secure and reliable fastening where precision and control matter.
Neo Fasteners offers Pan Head Torx Screws in a wide variety of sizes, threads, materials, and finishes—standard or custom-built to your application.
🛠️ Key Features
- Torx Drive (TX or 6-Lobe): High torque without cam-out
- Pan Head Design: Wide bearing surface with low profile
- Precise, Clean Finish for Electronics and Plastics
- Compatible with Automated Assembly (Power Tool Friendly)
- Reduced stripping and long tool life
📐 Available Sizes (Metric)
| Size (Dia) | Thread Pitch | Head Dia | Head Height | Torx Size | Length Range |
|---|---|---|---|---|---|
| M2 | 0.4 mm | 3.5 mm | 1.3 mm | T6 | 4–16 mm |
| M2.5 | 0.45 mm | 4.5 mm | 1.6 mm | T8 | 4–20 mm |
| M3 | 0.5 mm | 5.5 mm | 1.8 mm | T10 | 5–30 mm |
| M4 | 0.7 mm | 7.6 mm | 2.4 mm | T15 | 6–40 mm |
| M5 | 0.8 mm | 9.5 mm | 3.0 mm | T20 | 8–50 mm |
| M6 | 1.0 mm | 10.5 mm | 3.5 mm | T25 | 10–60 mm |
Inch (UNC/UNF) sizes available on request
Self-tapping Pan Torx and machine screw types available
🧱 Materials Available
- Stainless Steel (SS 304 / SS 316 / SS 202)
- Mild Steel (MS)
- Brass (IS 319 / CZ121)
- Nylon / Plastic (for insulation and light-duty use)
- High Tensile Alloy Steel (Grade 8.8 / 10.9)
🎨 Finishes Offered
| Finish Type | Use Case | Color |
|---|---|---|
| Zinc Plated (White) | General-purpose indoor use | Silver |
| Yellow Zinc | Electronics, automotive | Golden |
| Nickel Plated | Decorative and corrosion-free | Shiny silver |
| Black Oxide | Machinery, tool-free fastening | Black matte |
| Chrome Plated | High-end appearance | Mirror-like |
| Natural SS / Brass | Non-coated, anti-corrosive | Silver / Gold |
RoHS & ISO compliant finishes available.
🔧 Drive Options
- Standard Internal Torx (T6 – T25)
- Tamper-Proof Security Torx (Pin Torx) – Optional
- Combi Torx + Slot – On custom request
🔩 Thread Types
- Metric ISO (Coarse / Fine)
- UNC / UNF / BSW (on order)
- Self-Tapping Threads (DIN 7981 / 7982 Type)
- Machine Threads for tapped holes
📦 Packaging
- Polybag / Box / Bulk Carton: 100 – 5000 pcs
- Custom labeling & OEM barcoding
- Export-worthy packaging on request
- ISO 9001:2015 and ROHS certification on request
🧰 Applications
- Electrical & control panels
- Electronic device assembly
- Automotive interiors and consoles
- Plastic enclosures and casings
- Consumer appliances and metal fixing
- Medical devices and telecom panels
✅ Standards
- DIN 7985-TX – Pan Head Torx Machine Screws
- ISO 14583 – Pan Head Torx with ISO threading
- DIN 7500-TX – Self-tapping Pan Torx
- Compliant with RoHS, ISO 9001:2015
