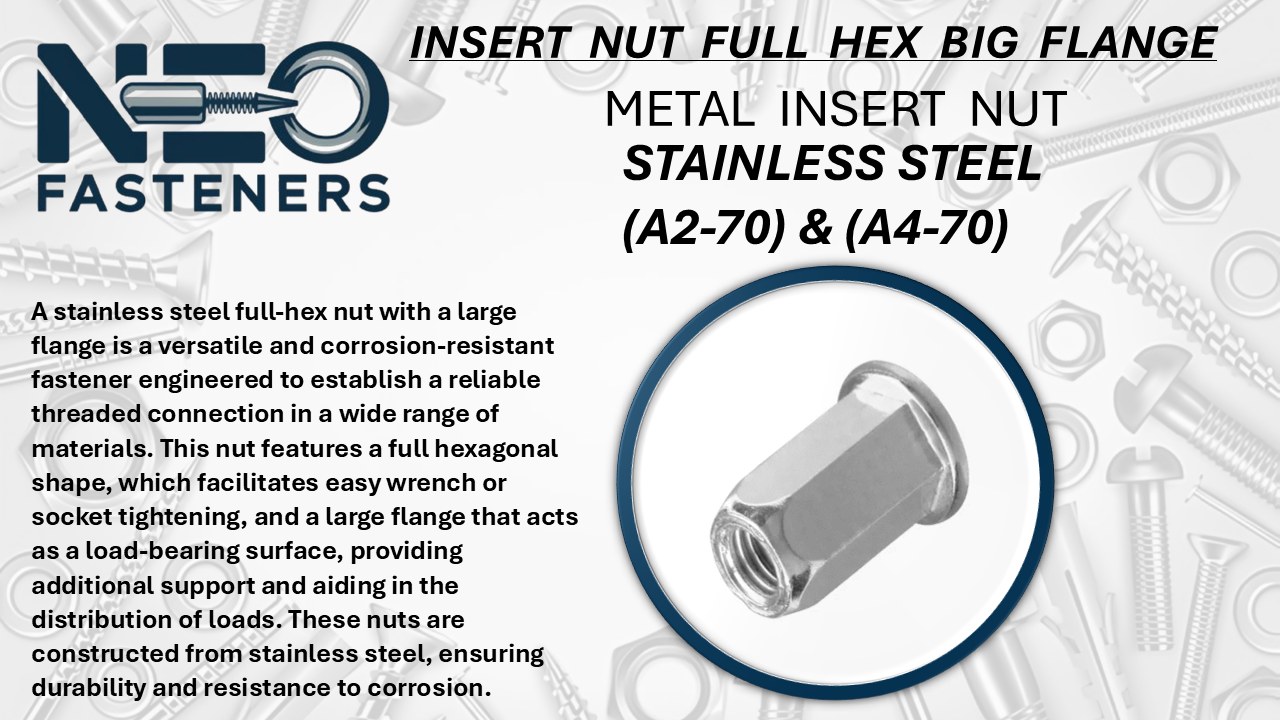

🔩 Insert Nut (Full Hex Body with Big Flange)
Neo Fasteners
Insert Nut (Full Hex Body with Big Flange) is a high-strength threaded insert designed for use in wood, MDF, chipboard, plywood, composites, and plastics.
The full hexagonal body provides maximum resistance to rotation and pull-out, even under high torque. The big flange design offers a larger bearing surface, preventing pull-through in softer materials and ensuring extra load distribution.
This makes it the preferred insert nut type where durability, heavy load capacity, and secure fastening are required.
✅ Key Features
- Full Hex Body – Maximum anti-rotation grip inside the base material.
- Big Flange Design – Larger contact area for improved load-bearing and pull-through resistance.
- Strong Internal Threads – Allows repeated tightening and loosening without thread damage.
- Durable & Secure – Withstands high torque applications in wood and plastics.
- Flush and Stable Fit – Prevents cracking or splitting of weaker base materials.
- Reusable Threads – Extends product life for assemblies requiring frequent disassembly.
🧱 Material & Finishes
-
Materials Available:
- Brass – Corrosion-resistant, ideal for furniture and decorative applications.
- Mild Steel (MS) – Cost-effective, available with protective plating.
- Stainless Steel (SS 304 / SS 316) – High corrosion resistance and strength.
- Zinc Alloy / Die Cast – Economical for light-duty applications.
-
Surface Finishes:
- Natural Brass Finish
- Zinc Plated (Clear / Yellow)
- Nickel Plated
- Black Oxide
📏 Available Sizes (Metric & Inch)
Metric Series (DIN / ISO Compatible)
| Thread Size | Body OD (D) | Length (L) | Flange OD (F) |
|---|---|---|---|
| M3 | 5.0 – 5.5 mm | 6 – 8 mm | 8.0 – 9.0 mm |
| M4 | 6.5 – 7.5 mm | 8 – 10 mm | 10.0 – 12.0 mm |
| M5 | 8.0 – 9.0 mm | 10 – 12 mm | 12.0 – 14.0 mm |
| M6 | 10 – 11 mm | 12 – 14 mm | 14.0 – 16.0 mm |
| M8 | 12 – 13 mm | 14 – 16 mm | 16.0 – 18.0 mm |
| M10 | 15 – 16 mm | 16 – 20 mm | 20.0 – 22.0 mm |
Inch Series (UNC/UNF)
| Thread Size | Body OD | Length | Flange OD |
|---|---|---|---|
| #8-32 | 0.20" | 0.30" – 0.45" | 0.35" – 0.40" |
| #10-24 | 0.25" | 0.35" – 0.50" | 0.42" – 0.48" |
| 1/4"-20 | 0.32" | 0.40" – 0.60" | 0.50" – 0.55" |
| 5/16"-18 | 0.40" | 0.50" – 0.70" | 0.60" – 0.70" |
| 3/8"-16 | 0.48" | 0.60" – 0.80" | 0.75" – 0.85" |
(Custom/OEM sizes also available.)
📐 Standards & Certifications
- Manufactured as per DIN 16903 (Threaded Inserts for Plastics/Wood)
- ISO 9001:2015 Certified Production
- RoHS Compliant – Free from hazardous substances (EU Directive 2011/65/EU & EU 2015/863)
🧰 Applications
- Furniture & Modular Assembly – Beds, wardrobes, tables, cabinets, chairs
- Woodworking – Provides reliable machine threads in MDF, particleboard, and plywood
- Automotive & Aerospace Interiors – Strong fastening in plastic and wood panels
- Machinery & Equipment – Provides wear-resistant threads in soft base materials
- DIY, Knock-Down & Flat-Pack Systems – Repeated assembly/disassembly
📦 Packaging & Supply
- Standard Packs: 100 / 500 pcs in sealed polybags
- Bulk Supply: 5,000 pcs in master cartons
- OEM Options: Custom branding, labeling & barcoding available
