🔩 Nylon CSK Phillips Screw – Countersunk Head, Non-Metallic Fastener | Neo Fasteners

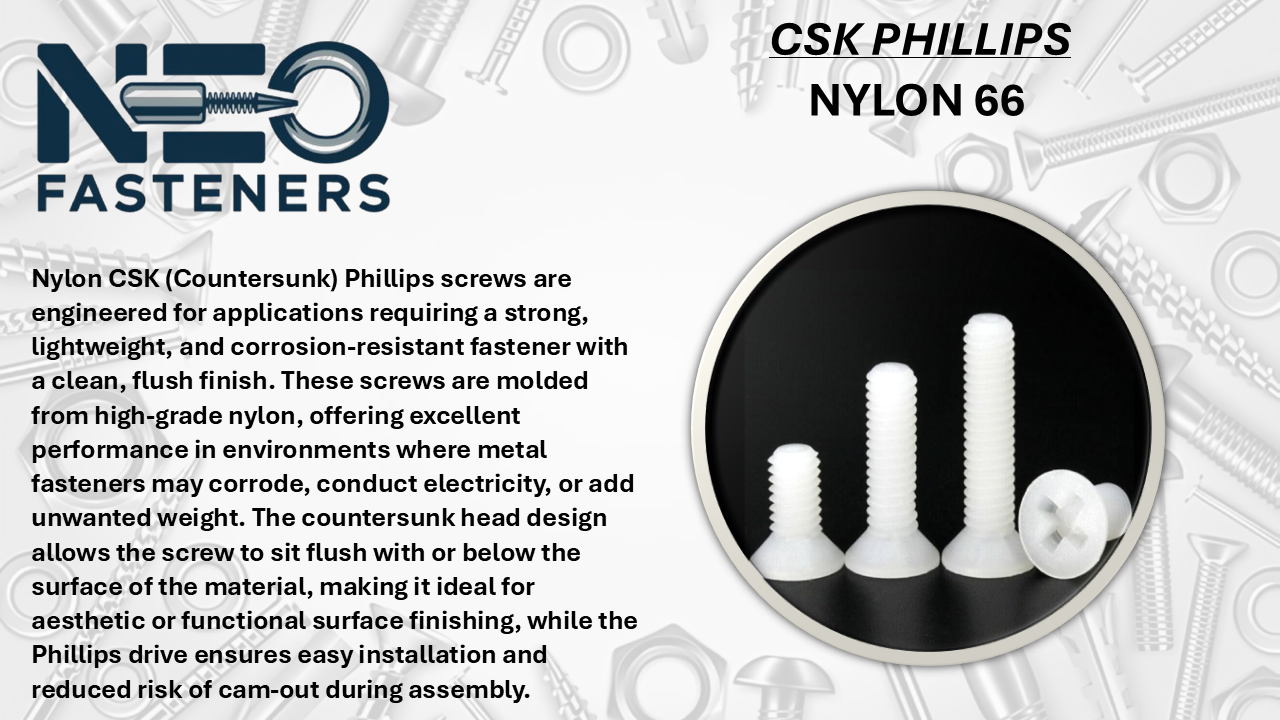

Nylon CSK Phillips Screws are countersunk head screws made from engineering-grade Nylon 6/6, designed for applications where lightweight, corrosion resistance, and electrical insulation are required.
The CSK (Countersunk) head sits flush with the surface after installation, giving a smooth, professional finish.
These screws are widely used in electronics, electrical panels, chemical processing equipment, marine hardware, and decorative assemblies.
✅ Key Features
- Flush finish – CSK head sits level with the surface for a neat appearance
- Corrosion-free – Ideal for outdoor, marine, and chemical environments
- Electrically insulating – Prevents short circuits in electrical assemblies
- Lightweight – Around 1/6th the weight of steel screws
- Non-magnetic – Safe for sensitive equipment and MRI rooms
- Chemical resistant – Withstands oils, acids, and solvents
- Phillips drive – Easy installation and removal without cam-out damage
🧱 Material & Properties
- Material: Nylon 6/6 (Polyamide) – UL94V-2 rated (UL94V-0 available on request)
- Temperature Resistance: -40°C to +120°C (continuous)
- Tensile Strength: ~70 MPa
- Colors: Natural White, Black (other colors available for bulk orders)
📏 Available Sizes
Metric
| Diameter | Length Range |
|---|---|
| M3 | 6 mm – 50 mm |
| M4 | 8 mm – 60 mm |
| M5 | 10 mm – 60 mm |
| M6 | 12 mm – 60 mm |
Other diameters and lengths available for OEM & bulk orders.
📐 Standards
- DIN 965 – Countersunk Head Machine Screws (adapted for Nylon)
- ISO 7046 – Countersunk Head Phillips Screws
- ISO 9001:2015 Certified manufacturing
- RoHS & REACH Compliant
🎨 Colors
- Standard: Natural White, Black
- Optional: Red, Yellow, Blue, Green (MOQ applies)
🧰 Applications
- Electronics – PCB mounting and panel fastening
- Electrical Panels – Corrosion-proof fastening with insulation
- Marine Equipment – Non-rusting fastening for boats and docks
- Chemical Plants – Non-reactive in corrosive atmospheres
- Furniture & Displays – Flush, decorative fastening points
- Medical Equipment – MRI-compatible and hygienic
📦 Packaging
- Small Packs: 50 / 100 pcs in polybags
- Bulk Supply: 5,000 pcs in cartons
- OEM packaging & labeling available
- Material Test Certificates available on request
🧩 Related Products
- Nylon Pan Phillips Screws
- Nylon Truss Phillips Screws
- Nylon Hex Bolts
- Nylon Dome Nuts
- Nylon Washers
