🔩 Nylon Pan Phillips Screw – Lightweight, Corrosion-Free Fastener | Neo Fasteners

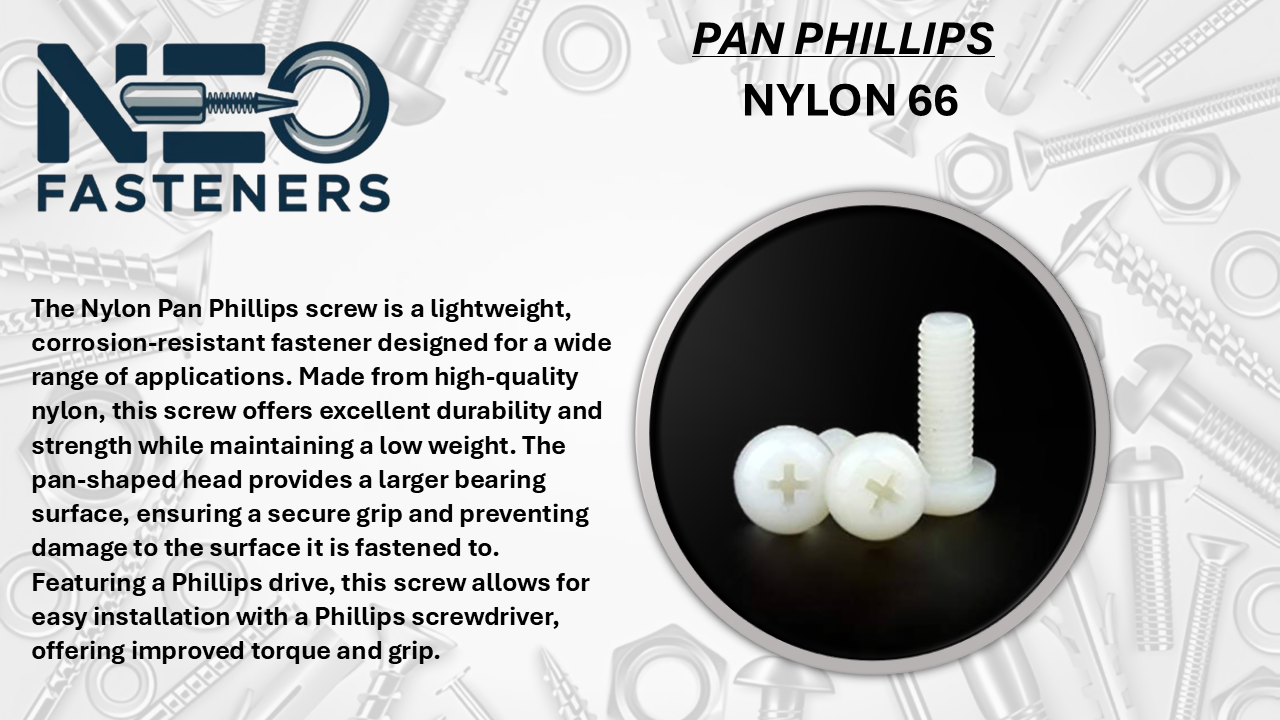

Nylon Pan Phillips Screws are lightweight, non-corrosive fasteners made from high-quality engineering-grade nylon (Polyamide). They feature a rounded pan head with a cross-shaped Phillips drive, ensuring easy installation with standard screwdrivers while offering excellent grip without damaging the mating surface.
These screws are ideal for electrical, electronic, chemical, and decorative applications where metal fasteners may corrode, conduct electricity, or cause interference.
✅ Key Features
- Non-metallic – Will not rust, corrode, or oxidize
- Electrical insulation – Non-conductive, prevents short circuits
- Lightweight – About 1/6th the weight of steel screws
- Chemical resistance – Resists acids, alkalis, oils, and solvents
- Non-magnetic – Suitable for sensitive electronic equipment
- Smooth finish – Prevents surface damage and scratching
🧱 Material & Properties
- Material: Nylon 6/6 (Polyamide) – UL94V-2 flame retardant grade available
- Temperature Resistance: -40°C to +120°C (continuous)
- Tensile Strength: ~70 MPa
- Color: Natural (Milky White), Black, or Custom colors
📏 Available Sizes (Metric & Inch)
Metric (ISO)
| Diameter | Length Range |
|---|---|
| M2 | 4mm – 30mm |
| M2.5 | 4mm – 35mm |
| M3 | 5mm – 40mm |
| M4 | 6mm – 50mm |
| M5 | 8mm – 60mm |
| M6 | 10mm – 80mm |
Special lengths, colors, and head styles available on request.
🔧 Head & Drive Options
- Head Style: Pan Head (standard)
- Drive Style: Phillips (cross recess), Combination Phillips/Slot, or Torx (custom)
🎨 Colors Available
- Standard: Natural White & Black
- Custom colors available for bulk orders (Red, Blue, Green, Yellow, etc.)
📐 Standards
- ISO 7045 (for Pan Head Phillips) – Metric
- DIN 7985 – Metric Pan Head Screws
- ANSI/ASME B18.6.3 – Inch Pan Head Machine Screws
🧰 Applications
- Electrical & Electronics – Circuit boards, terminal blocks, control panels
- Chemical Industry – Non-reactive fixings for tanks, pumps, pipelines
- Medical Equipment – MRI-compatible and hygienic assembly
- Marine & Outdoor Use – Rust-proof in saltwater environments
- Decorative Assemblies – Furniture, sign boards, display units
- DIY & Hobby Projects – Lightweight fastening for models and prototypes
📦 Packaging
- Small Packs: 100 / 500 pcs in polybags
- Bulk Supply: 25 kg cartons or custom OEM packaging
- Labeling with size, batch, and material details
- RoHS, REACH, and Material Test Certificates available on request
🧩 Related Products
- Nylon Countersunk Phillips Screws
- Nylon Hex Bolts
- Nylon Washers & Nuts
- Nylon Spacers & Standoffs
