🔩 Nylon Dome Nut – Protective, Non-Corrosive Cap Nut | Neo Fasteners

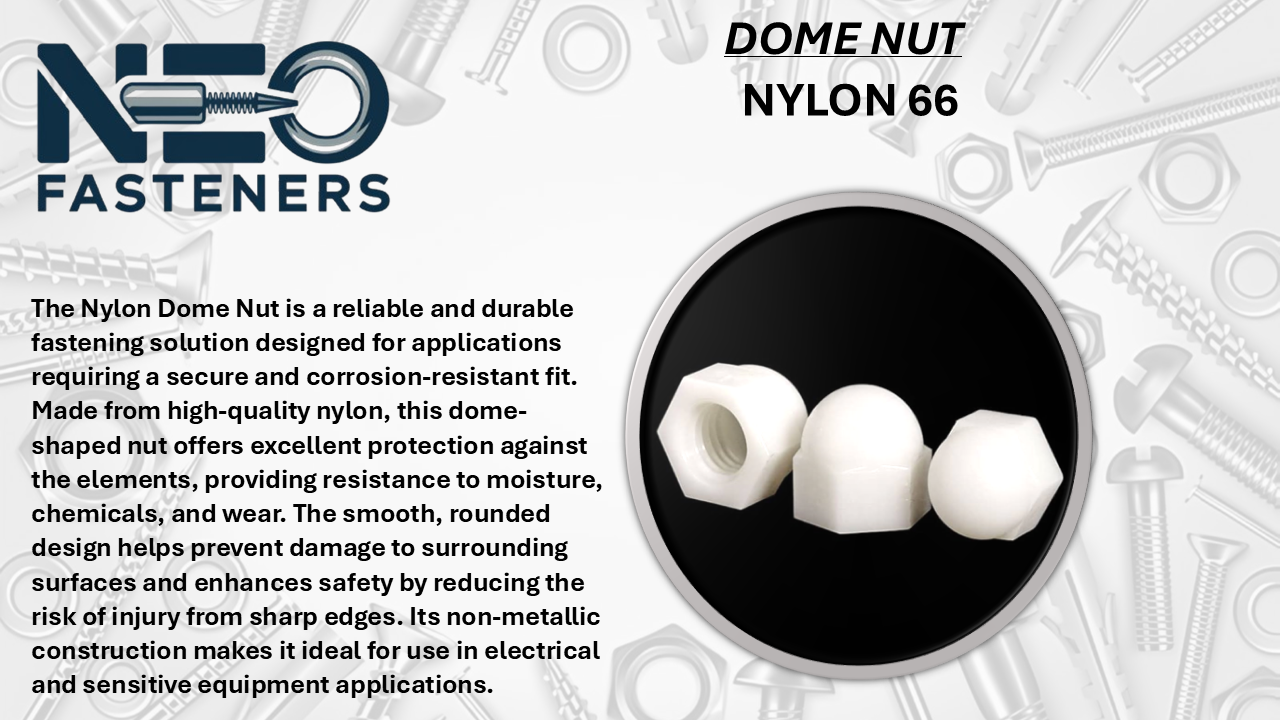

Nylon Dome Nuts, also known as Nylon Acorn Nuts or Nylon Cap Nuts, are non-metallic fastening components with a smooth, rounded dome-shaped top that covers the exposed threaded end of a bolt or stud.
These nuts not only provide a clean, finished appearance but also protect threads from damage, corrosion, and accidental contact. Made from engineering-grade Nylon 6/6, they are lightweight, corrosion-free, non-conductive, and chemically resistant, making them ideal for applications where metal fasteners may cause rust, electrical conduction, or chemical reactions.
✅ Key Features
- Protects exposed threads from dirt, moisture, and impact
- Non-corrosive – Will not rust or oxidize in outdoor or marine use
- Electrically insulating – Safe for electrical applications
- Lightweight – About 1/6th the weight of metal nuts
- Non-magnetic – Suitable for sensitive instruments and MRI environments
- Smooth, safe finish – Prevents injuries from sharp bolt ends
- Decorative look – Ideal for visible fastening points
🧱 Material & Properties
- Material: Nylon 6/6 (Polyamide) – High mechanical strength, low moisture absorption
- Temperature Resistance: -40°C to +120°C continuous use
- Tensile Strength: ~70 MPa
- Flame Retardancy: UL94V-2 (optional UL94V-0 available)
- Colors: Standard Natural White & Black, custom colors on request
📏 Available Sizes
Metric (ISO)
| Size | Thread Pitch |
|---|---|
| M4 | 0.7 mm |
| M5 | 0.8 mm |
| M6 | 1.0 mm |
| M8 | 1.25 mm |
| M10 | 1.5 mm |
| M12 | 1.75 mm |
| M16 | 2.0 mm |
Custom thread sizes and dome heights available for bulk orders.
📐 Standards
- DIN 1587 – Dome / Acorn Nuts (Metric)
- ISO 4032 with Dome Cap – Modified for Nylon
- ANSI/ASME B18.2.2 – Inch Dome Nuts
🎨 Colors
- Standard: Natural White, Black
- Optional: Red, Blue, Green, Yellow, or custom RAL colors (MOQ applies)
🧰 Applications
- Electrical & Electronics – Covers sharp threaded ends in panels and enclosures
- Marine & Outdoor – Rust-free finishing for boats, docks, and equipment
- Chemical Industry – Non-reactive caps for process equipment
- Food Processing Machinery – Hygienic, corrosion-free fastening
- Furniture & Displays – Decorative fastener covers for visible joints
- DIY & Hobby Projects – Model making, craft works, and prototypes
📦 Packaging
- Small Packs: 100 / 500 pcs in polybags
- Bulk Supply: 25 kg cartons
- OEM branding and barcode labeling available
- RoHS & REACH compliant; Material Test Certificates provided on request
🧩 Related Products
- Nylon Hex Nuts
- Nylon Hex Bolts
- Nylon Washers
- Nylon Countersunk Screws
- Nylon Spacers & Standoffs
