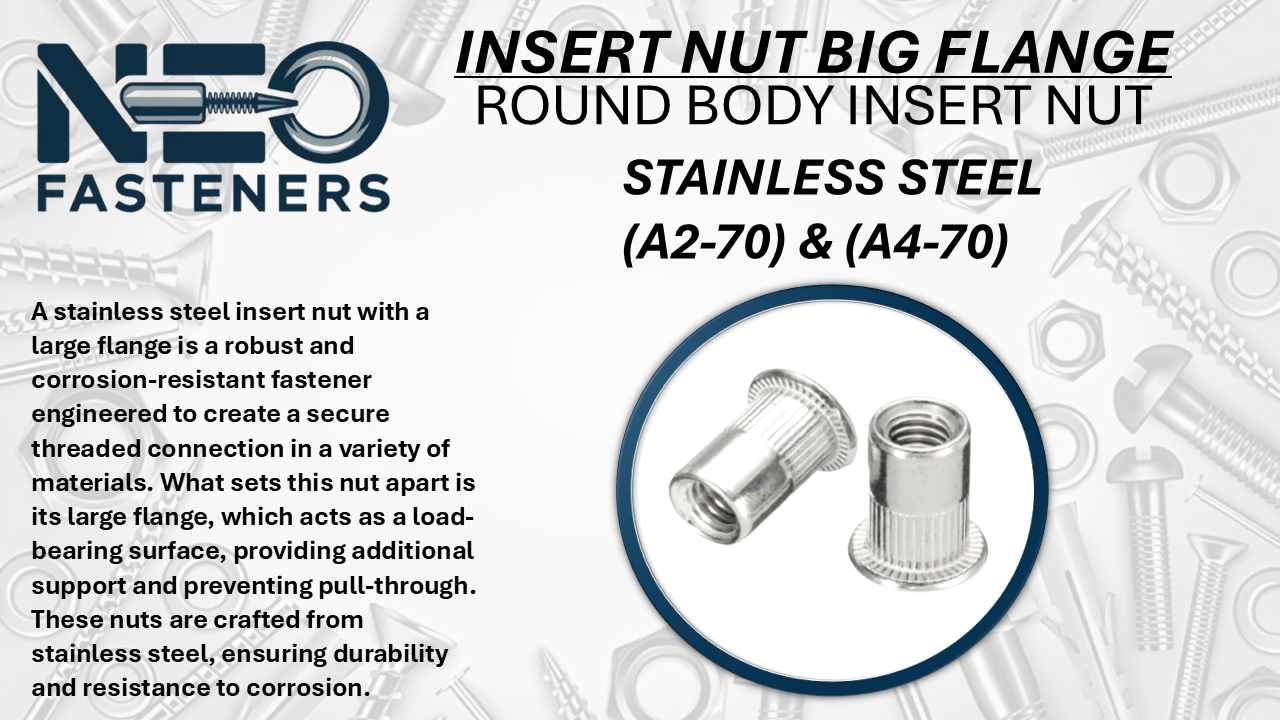

🔩 Insert Nut (Round Body with Big Flange)

🌟 Product Overview

Neo Fasteners offers high-quality Insert Nuts (Round Body with Big Flange) designed to provide strong, reusable machine threads in wood, MDF, chipboard, plastics, and composites. The big flange design distributes load across a wider area, preventing pull-through and surface damage while ensuring a secure fastening solution.

These insert nuts are easy to install into pre-drilled holes and are ideal for applications where durability, high pull-out resistance, and clean assembly are required.

🔹 Key Specifications

Type: Round Body Insert Nut with Big Flange
Thread Range: M3 to M12 (UNC/UNF available on request)
Body Length: 6 mm – 25 mm (varies by size)
Flange Type: Big Flange (flat collar for load distribution)
Body Type: Round (Smooth or Knurled for grip)
Material Options:
- Brass
- Mild Steel (MS)
- Stainless Steel (SS 304 / SS 316)
- Zinc Alloy
Finish Options:
- Natural Brass
- Zinc Plated (Clear / Yellow)
- Nickel Plated
- Self-Finish Stainless Steel
Standards: ISO / DIN / ASTM
Compliance: ISO 9001:2015 Certified | RoHS & REACH Compliant

📏 Available Sizes

Thread Size	Body Length (mm)	Outer Diameter (mm)	Flange Diameter (mm)	Hole Size (mm)
M3	6 – 8	4.5 – 5.0	7 – 8	4.0 – 4.5
M4	8 – 10	6.0 – 6.5	9 – 10	5.5 – 6.0
M5	8 – 12	7.0 – 8.0	10 – 11	6.5 – 7.0
M6	10 – 14	9.0 – 10.0	12 – 13	8.5 – 9.0
M8	12 – 18	11.0 – 12.0	15 – 16	10.5 – 11.0
M10	14 – 20	13.0 – 14.0	18 – 19	12.5 – 13.0
M12	16 – 25	15.0 – 16.0	20 – 22	14.5 – 15.0
